Zygodiscus segmentatus
Set number: 1971
-
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
-
9
-
10
-
11
-
12
-
13
-
14
-
15
-
16
-
17
-
18
-
19
-
20
10µm
Holotype in the mobile mount
Set number: 1970
-
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
-
9
-
10
10µm
Set number: 1969
-
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
-
9
-
10
10µm
Set number: 1968
-
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
-
9
-
10
-
11
-
12
10µm
Set number: 1967
-
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
10µm
Set number: 1966
-
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
-
9
-
10
-
11
-
12
10µm
Set number: 1965
-
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
-
9
-
10
10µm
Set number: 1964
-
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
-
9
-
10
-
11
-
12
10µm
Set number: 1972
-
1
-
2
-
3
-
4
-
5
-
6
-
7
-
8
10µm
Zygodiscus segmentatus Varol, 2025a

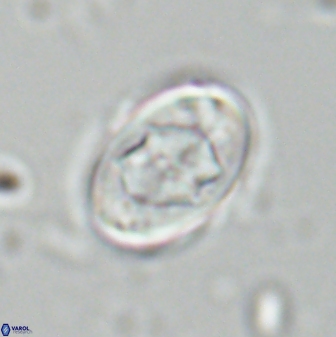

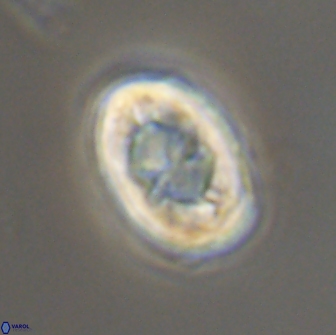

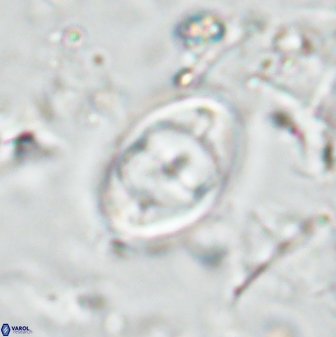

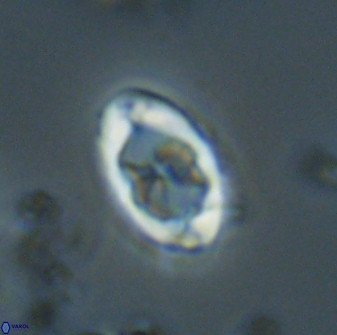

This species is characterised by a narrow, dextrally imbricated outer wall, a relatively wide tangential inner wall, and a multi-segmented, hexagonal diagonal disjunct bar that completely closes the central area. It has a distinct appearance in side view, with the central structure resembling a goblet.
From the Latin segmentatus, meaning segmented , referring to its segmented diagonal bar
Length = 8.24 μm; Width = 5-20 μm; Height = 3.87 μm (all measured in XPL).

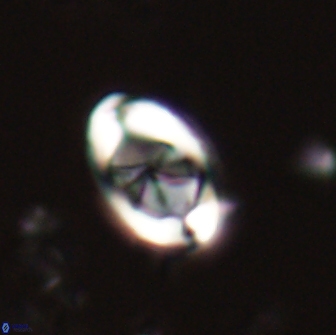

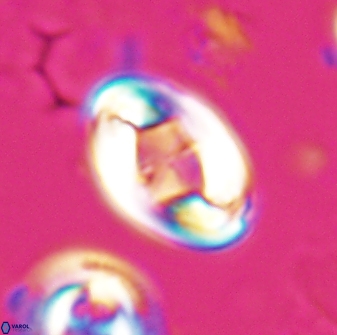

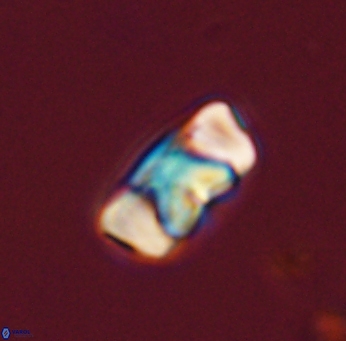

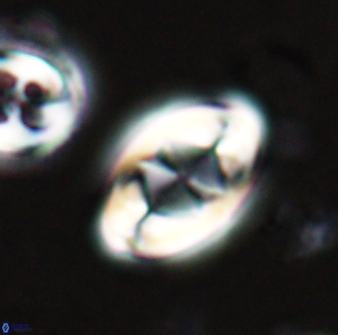

Optical Properties: The outer wall remains in constant extinction, while the inner wall displays first-order white to yellow interference colours, with dextrogyre inclined extinction lines and length-fast (−) elongation on the distal side. The diagonal bar exhibits first-order whitish-grey interference colours with length-slow (+) elongation on the distal side. The goblet-like central structure shows length-fast (−) elongation, while the wall displays length-slow (+) elongation in the side view.
Varol, O. 2025a. A practical guide to optical studies of calcareous nannofossils. Grzybowski Foundation Special Publication. 29: 1-222
Holotype
Zygodiscus segmentatus
Varol, 2025a
Late Paleocene
DSDP Leg 39, Sites 354, Ceará Rise, North Atlantic Ocean
