Set number: 1012

  • Reticulofenestra dennei 27181 1
  • Reticulofenestra dennei 27182 2
  • Reticulofenestra dennei 27183 3
  • Reticulofenestra dennei 27184 4
    10µm
Reticulofenestra dennei, Middle Miocene, IODP Expedition 354, Hole U1451B, Bengal Fan, Indian Ocean

Set number: 1011

  • Reticulofenestra dennei 30488 1
  • Reticulofenestra dennei 30487 2
  • Reticulofenestra dennei 30491 3
  • Reticulofenestra dennei 30489 4
    10µm
Reticulofenestra dennei, Middle Miocene, IODP Expedition 354, Hole U1451B, Bengal Fan, Indian Ocean

Set number: 1010

  • Reticulofenestra cruxii 30480 1
  • Reticulofenestra cruxii 30482 2
  • Reticulofenestra cruxii 30485 3
  • Reticulofenestra cruxii 30477 4
  • Reticulofenestra cruxii 30481 5
  • Reticulofenestra cruxii 30483 6
  • Reticulofenestra cruxii 30486 7
  • Reticulofenestra cruxii 30478 8
    10µm
Reticulofenestra dennei, Middle Miocene, IODP Expedition 354, Hole U1451B, Bengal Fan, Indian Ocean

Set number: 1009

  • Reticulofenestra dennei 30502 1
  • Reticulofenestra dennei 30501 2
  • Reticulofenestra dennei 30504 3
  • Reticulofenestra dennei 30503 4
    10µm
Reticulofenestra dennei, Middle Miocene, IODP Expedition 354, Hole U1451B, Bengal Fan, Indian Ocean

Set number: 1093

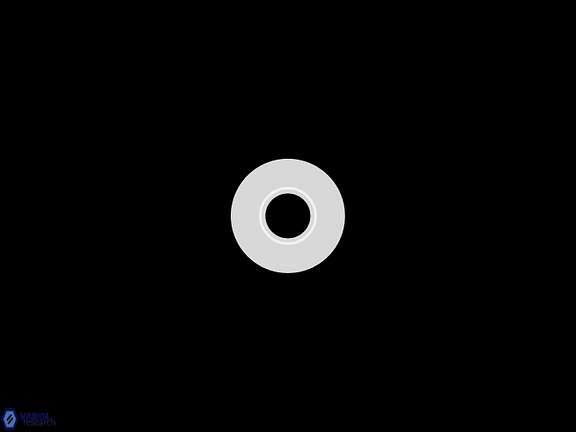

  • dennei 1
    10µm
Reticulofenestra dennei
Final Epithet
Reticulofenestra dennei Varol, 2025
Basionym

Reticulofenestra dennei Varol, 2025

Synonyms

Cyclicargolithus minutus Denne, 2008 (nom. nud.) Invalid ICN Art. 38.1

Diagnosis

Reticulofenestra dennei is a small species, measuring between 3.0 and 5.0 μm. It is strictly circular, with a void central area narrower than the width of the pelaga (the surrounding structure). The tube cycle around the central area is smooth and narrow.

Etymology

In honour of Prof. Dr R. Denne, Hunter Enis Endowed Chair in Geology, Austin, TX, USA, in recognition of his contributions to taxonomy and biostratigraphy of calcareous nannofossils.

Dimensions Of Holotype

Maximum diameter = 4.76 μm; Diameter of central area = 1.40 μm; Width of the pelage = 1.68 μm.

Description

Optical Properties: The shields display first-order greyish-white interference colours. Reticulofenestra dennei shows inclined dextrogyre (right-handed) extinction lines on the tube cycle but exhibits parallel extinction lines on the shields. These angles are typically 0° on the distal shield and about 77° on the tube cycles on the distal side. The species has a length-fast (-) elongation. The extinction angle on the shield is distinctly different from those typically seen in the genera Reticulofenestra and Cyclicargolithus, raising questions about its assignment to Reticulofenestra.

Remarks

Reticulofenestra dennei differs from Reticulofenestra pospichalii by having a narrower central opening than the width of the pelaga, whereas Reticulofenestra pospichalii has a wider central opening than the width of the pelaga. Reticulofenestra dennei is smaller than Reticulofenestra bukryi (synonym Reticulofenestra kahniae), which has a size range from 6.0 to 8.0 μm according to Wise, 1973 (calculated holotype size is 6.8 μm).

References

Denne, R. A., (2008): Utilizing abundance changes of new and non-standard calcareous nannofossil taxa to increase biostratigraphic resolution in expanded continental margin deposits: Examples from the Middle and Lower Miocene of the Gulf of Mexico. - Transactions of the Gulf-Coast Association of Geological Societies. 58: 227-239.

Hay, W. W., Mohler, H. P. & Wade, M. E., (1966): Calcareous nannofossils from Nal'chik (northwest Caucasus). - Eclogae Geologicae Helvetiae. 59: 379-399.

Wise, S. W., (1973): Calcareous nannofossils from cores recovered during Leg 18, Deep Sea Drilling Project: biostratigraphy and observations on diagenesis. - Initial Reports of the Deep Sea Drilling Project. 18: 569-615.
